Title

Adding infra layer of file based database so that we remove databases like mongodb.

Abstract

Currently, Hagrid's infra layer has two types 1. persistent 2. inmemory

For discovery based connectors, developers need to use persistent infra layer i.e Mongodb. So for any developer who want to use Hagrid to develop discovery based connectors need to have mongodb set up along with it.

Mongodb set up should be highly scalable due to high writes and reads otherwise infra issues could come up. We have faced the similar problems with Freshworks platform team where they need to add secondary replica for read preferences. Adding a secondary replica in Mongodb add a problem where at some point in time 1. Hagrid status goes successful 2. data has not been replicated from primary to secondary mongo instances 3. Main thread when consumes assets then it says all consumed ( from secondary replica) , even though not complete data is replicated in publisher_list from primary to secondary mongo instance

So if we notice, along with Hagrid development, developers need maintaince of Mongodb as well.

We can avoid this work by replacing Mongodb with some other file based database which can store upto '100GB' of data In this process, I have figure out a database named nitrite db which can suit our usecase. In this DSR, we can going to detail out how to integrate nitrite database into Hagrid infra layer.

Table of Contents

Introduction

Currently, Hagrid's infra layer has two types 1. persistent 2. inmemory

For discovery based connectors, developers need to use persistent infra layer i.e Mongodb. So for any developer who want to use Hagrid to develop discovery based connectors need to have mongodb set up along with it.

Mongodb set up should be highly scalable due to high writes and reads otherwise infra issues could come up. We have faced the similar problems with Freshworks platform team where they need to add secondary replica for read preferences. Adding a secondary replica in Mongodb add a problem where at some point in time 1. Hagrid status goes successful 2. data has not been replicated from primary to secondary mongo instances 3. Main thread when consumes assets then it says all consumed ( from secondary replica) , even though not complete data is replicated in publisher_list from primary to secondary mongo instance

Due to this, developers are missing some assets which are not yet published in secondary due to database lag. So if we notice, along with Hagrid development, developers need maintaince of Mongodb as well.

In this DSR, I would like to add another infra type nitrite which is a file based no sql database. This database can potentially be the replacement of mongodb for discovery based connectors

We had earlier attempted to have file based database system using H2 database however it does not work due to following issues

  1. Hagrid demands creation and deletion of tables at run time. However due to H2 ACID nature, creating and deleting tables causing delays and eventually thread exceptions

  2. Whenever thread is interrupted ( due to reason like hagrid shutdown ) and it is making a connection to database file via FileChannel NIO API then if this thread has interrupt enabled , it throws MVStoreException

With this version of file based database nitriteDB we will make sure that we resolved these threading issues and provide clear implementation.

Goals and Requirements

  • Onboard file based no sql database like nitriteDB
  • Performance of the Hagrid should be increase or atleast no impact
  • Validating if nitrireDB can be used in orchestration based connectors as well.
  • NitriteDB works well in conditions when threads are interrupted

Proposed Specification

Below are the technical specifications

Technical Specification

  1. Implement nitriteDBService
  2. Implement nitriteDBList
  3. Implement nitriteDbQueue
  4. Implement nitriteDBKeyValue
  5. Make changes in InfraBeanConfiguration service to create instance of nitriteDB
  6. Introduce a new infra type in hagrid.yml named nitriteDB which will indicate that customer want to use nitriteDB

Use Cases

Usecase of discovery based connector

If customer is developing a discovery based connector and want to use nitriteDb then he can mention as such in hagrid.yml

  infra:
      infra_type: "nitrite"
      nitrite_data_path: "/Users/aaggarwal/Documents/hagrid-releases/hagrid-oss/hagrid-oss/database"
      nitrite_database_type: "file"
Above keys are translated in the following way

  1. Above infra_type means that customer want to use nitrite db.
  2. nitrite_data_path is the path of the directory where nitriteDB should create its database files
  3. nitrite_database_type file meaning that customer want to use file based database.

Usecase of orchestration based connector

If a customer is develiping a orchestration based connector and want to use nitriteDB then he can mention as such in hagrid.yml

  infra:
      infra_type: "nitrite"

If key nitrite_database_type is not present then Hagrid by default assume that customer want to create inmemory database

Design Overview

Below is the high level design overview that we are going to follow 1. Implement NitriteService in the similar fashion as we have implemented mongoDB or H2 2. Implement NitriteDbList in the similar fashion as we have implemented in mongoDBList or H2List 3. Implement NitriteDbQueue in the similar fashion as we have implemented in mongoDbQueue or H2Queue 4. Implement NitriteKeyValue in the similar fashion as we have implemented in mongodbKeyValue or H2KeyValue

When we are implementing we are assuming one change that Hagrid should make across infra. That change is developer will always save json string into the Infra . To save array of json strings infra already provide List<String> methods.

Current Status

Currently, all methods of infra accept String as parameter to save into the database. Internally in put methods ( methods which save the data ) save the string as it is.

We are looking to change this behaviour to make it manadatory that the string that is being saved must be json string

Required Status

With the implementation of nitriteDB, I will assume that all strings that are being saved into Hagrid are of the json type

This change give us the ability to use the database functionality itself to search / filter / group by assets. This way, we can remove the need to freshIndex that we have created separately.

Detailed Design

I am proposing to have two flavour of nitriteDb used in Hagrid 1. persistent version which works on the top of RockDB 2. inmemory version which works with inmemory database

Customer can use any of the flavour of nitriteDB based on whether connector is being developed for discovery usecase or action based use case

Here is how hagrid.yml may look like in both cases

For file based use case where your connector will run heavy discovery job

infra:
infra_type: "nitrite"
nitrite_data_path: "/Users/aaggarwal/Documents/hagrid-releases/hagrid-oss/hagrid-oss/database"
nitrite_database_type: "file"

For file based use case where your connector will take lots of actions on third-party

infra:
infra_type: "nitrite"
nitrite_database_type: ""

Earlier Attempts with H2 database

Before using nitriteDb, we have tried with H2DB, however we faced problems where h2db was not scaling due to its acid properties and it is build on the top of MVStore.

  1. Global Locking and DDL commands are resource intensive in H2DB - The nature of database, Hagrid needs is where it can executes DDL commands at scale. As H2Db is based on MVStore, meaning higher consistency hence when using H2DB in real-time connector or even sometime in discovery based connectors , H2Db was throwing MVStoreException.
  2. Interrupted Thread Problem in H2 - In Hagrid, customer can terminate sync at any point in time. Hagrid terminate sync by nterrupting all the threads that it is running. Now when a interrupt flag of a thread is ON and if at that point of time that thread is doing any H2DB operation then H2DB raise multiple cascading exceptions (like close the db itself) instead of silently refusing or executing the command.

Resolving it with Nitrite DB

I am proposing these two problems by implementing nitriteDB in Hagrid. NitriteDb circumvent these two problems as below 1. As Nitrite DB is noSQL database and along using it with RockDB file module, executing DDL commands in nitriteDb is faster and lighter than any sql based database. 2. As I am using nitriteDb on the top of RockDB - NitriteDB connects with Rockdb (written in C ) using JNI ( java native interface ) , when a thread is interrupted in java then it does not affect or matter to RockDB. Hence an operation is performed as it.

Hence using nitriteDb along with RockDB is right solution for Hagrid.

Caveat with NitriteDB

One caveat with NitriteDb I have found is that if any exception occur in RockDB module then JVM crashses as this exception is outside of JVM as RockDB is connected with nitriteDB using JNI instead of regular java classes.

I saw the problem of jvm crash is happening then I am performing any operation on nitriteDb when it is closed. So to mitigate this problem, before performing any action on nitriteDb I am checking whether it is open or not.

Compatibility

  1. Including nitriteDB as another driver will keep Hagrid compatible with 4.x.x.
  2. However, I have added one condition that if a customer is saving any data in the infraQueue or infraList then it must be of the form json like {"name", "amit"}
  3. In future version, we will make it mandatory to save only json based string in the infra layer.

Impact

Following will be the impacts 1. Impact on Hagrid where I need to add nitriteDb driver in infra layer 2. Impact on hagrid.yml to add another type of driver 3. Impact on documentation to give documentation on how to use nitriteDB

Performance Impact

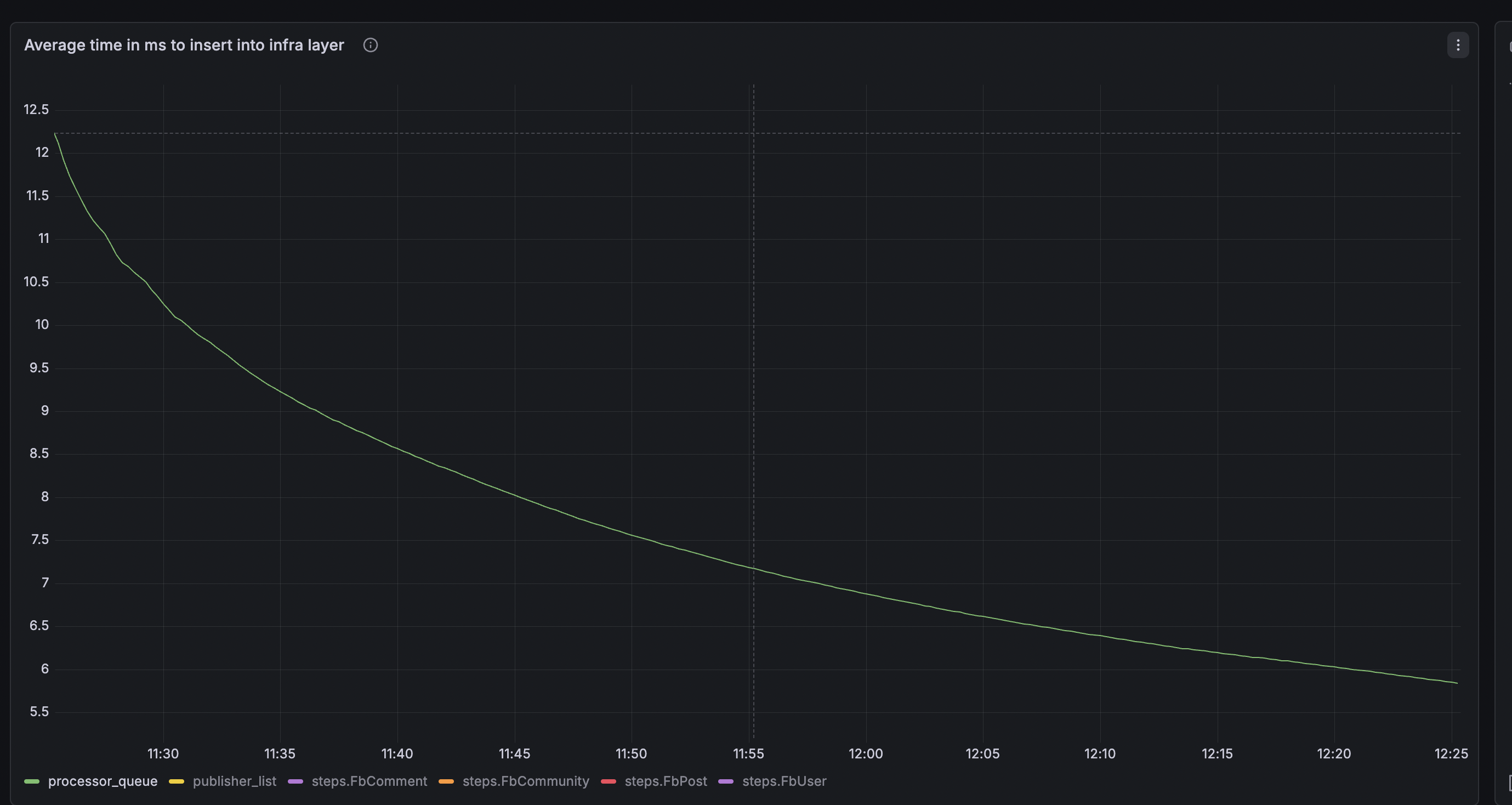

  • With nitriteDb I have seen very good performance even in the processor_queue. Like with mongodb, we used to have average ms to insert upto 300 - 500 ms, with nitritedb it is always less than 100ms

alt text

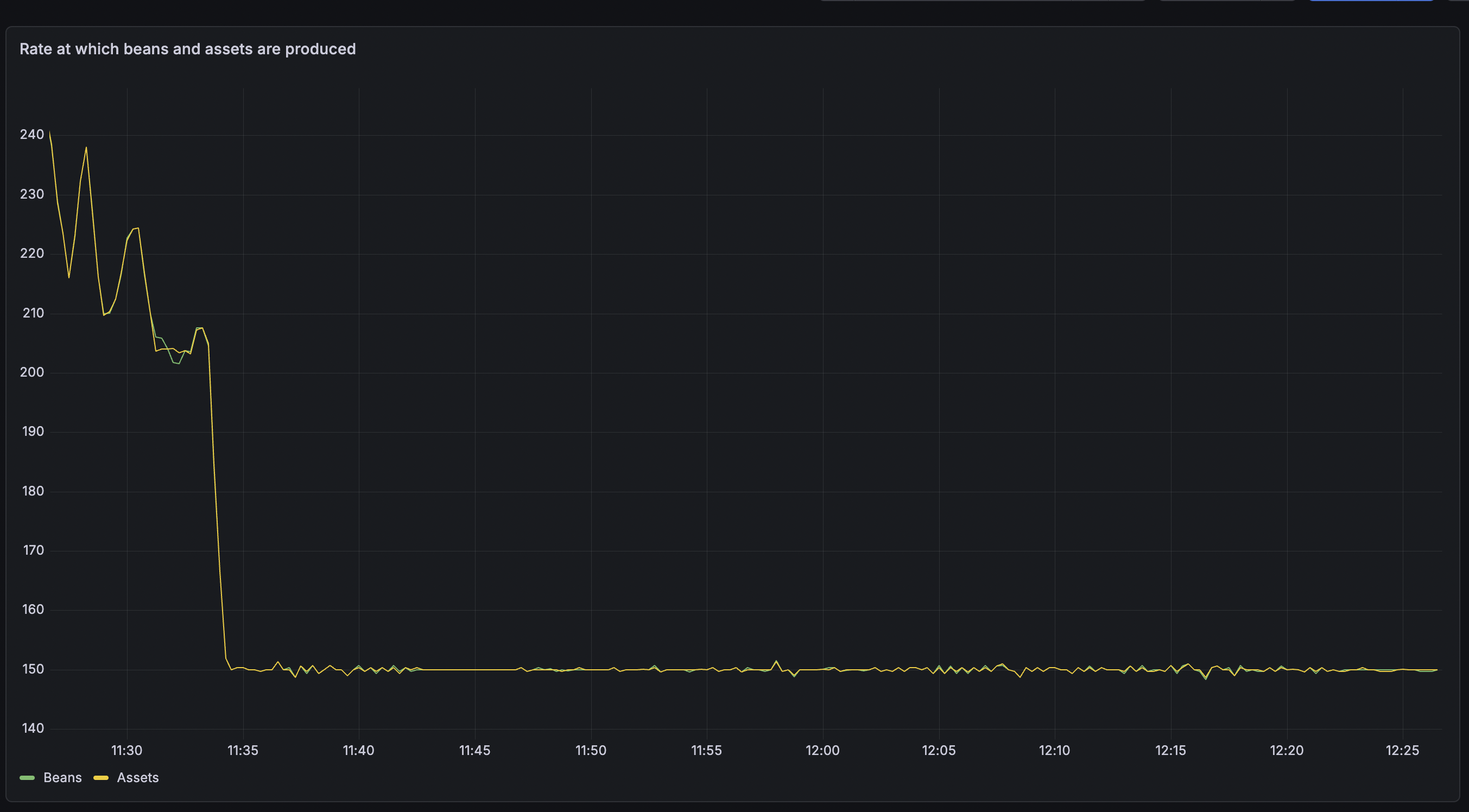

  • Rate of creation of beans and assets are almost equal

alt text

Alternatives

Earlier, I have tried alternatives like H2Db for which I have given the issues that I have faced.

Testing

Plans for testing the specification.

  1. Test if it can store large volume of data
  2. Yes It is working well for large volume of data -
  3. Check if value column has hold documents upto 1 MB
  4. Yes it is tested with document size upto 8MB .. Db do not throw any error.
  5. Check if db works well in case of orchestration use case
  6. Yes I have tested it and it works really well
  7. Check if sync shutdown abruptly then db behaves properly.
  8. Yes it works well. I tested it during durability testing

Reference Implementation

You can find the reference documentation here at - https://github.com/freshworks-oss/hagrid-oss/tree/dsr/44/feature

Contributors

List of individuals and organizations involved in the proposals.

  1. Amit Aggarwal
  2. github - 0xvoila
  3. email - amit.aggarwal85@gmail.com

Schedule

Timeline for the development and release of the specification.

I am planning to release it after I am doing with testing when document size is large. This is basically to test for test cases like confluence connector, share point connectors etc.
