Processor Module Services

Processor module contains services which helps you to perform ETL operations on the data (beans) fetched by Traverser module. Processor module has many services to perform ETL process and are organised in this way

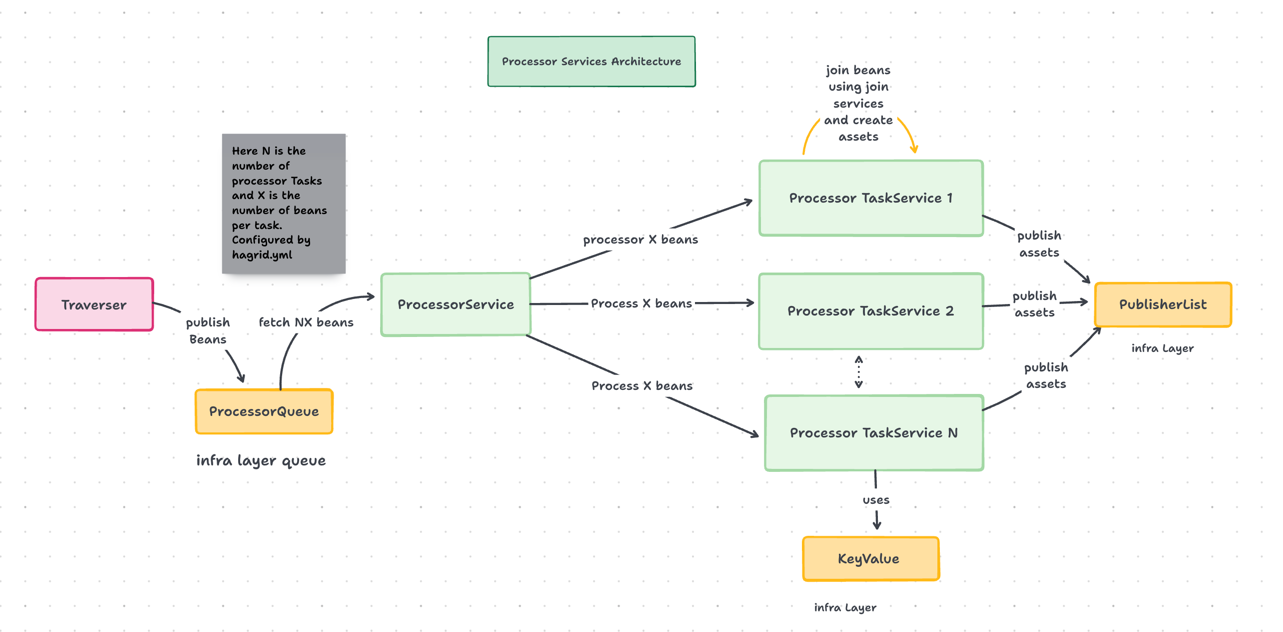

Take a look at below service diagram to better understand about processor module.

Here we can see three different kind of services

Processor Service
Processor Task Service
Package of Join Services
1. Noop Join Service
2. Inner Join Service
3. Left Join Service

Processor Service

Processor Service is the main service and its responsibility is to fetch beans from processor_queue ( infra layer) and launch number of processorTasks based on the configuration provided by the developer in Hagrid.yml.

Once it fetches that number of beans, then it creates the instances of ProcessorTasks and pass part of the beans to each processor Tasks for processing.

ProcessorTask Service

Processor Task service is the service whose responsibility is to create the assets based on the some logic which I am going to explain below. Before that we need to understand an important object assetBeanDependencyMap

" end="

AssetBeanDependencyMap as the name suggest is the object which contains which assets depends on which all beans. So when a developer creates assets like this

@NoArgsConstructor
@Getter
@Setter
@JsonIgnoreProperties(ignoreUnknown = true)
@JsonInclude(JsonInclude.Include.NON_EMPTY)

public class FbComment extends AbstractAsset {

    String comment_id;
    String comment_title;
    String comment_text;

    public void setBatchFromBean(FbComment comment){

        comment_id = comment.getComment_id();
        comment_title = comment.getComment_title();
        comment_text = comment.getComment_text();
    }

    @Override
    public void transform() {
//        System.out.println("Creating comment asset");
    }

    @Override
    public Object getUniqueIdentifier() {
        return null;
    }
}

then Hagrid creates the dependency of asset named

com.freshworks.hagrid.assets.FbComment -> [com.freshworks.hagrid.beans.FbComment, com.freshworks.hagrid.beans.FbANyOtheralso]

Hagrid build this map by reading method parameters of the methods present in asset class. Hagrid build this static map for all assets present in asset path.

This assetBeanDependencyMap is very important for processor service to join beans on some key if a asset depends on multiple beans.

Each processorTask service has assetBeanDependencyMap. ProcessorTask service loops through each bean ( from the list provided by ProcessorService) and check for each asset in assetBeanDependencyMap, if this asset can be build using this bean or not. Here are few possible cases

Making Noop Assets

Noop Assets are the assets which depends on only one bean.
There are the cases when an asset is simple asset i.e. just depends on single bean. For example - If an asset depends on just one bean like beans.FbComment and current processing bean is also beans.fbComment then ProcessorTask will create the asset with this bean and publish into publisher_list

Making of InnerJoin Assets

There are some assets which are created by the combination of two beans. Consider the below asset definition

@Setter
@NoArgsConstructor
@JsonInclude(JsonInclude.Include.NON_EMPTY)
@JsonIgnoreProperties(ignoreUnknown = true)

@FreshJoin(rightClass = com.freshworks.hagrid.beans.User.class, uniqueJoinName = "user_usage_join",join_type = FreshJoin.JOIN_TYPE.INNER_JOIN,
        onFieldList = {
                @FreshJoin.OnField(rightClassFieldName ="id", leftClassFieldName = "user_id", leftClass =  com.freshworks.hagrid.beans.Usage.class),
        }
)

public class UserUsage extends AbstractAsset {

    String user_id;
    String usageValue;
    String userName;


    public void setUser_id(User user, Usage usage){
        this.user_id = user.getUserId();
        this.usageValue = usage.getUsage();
        this.userName = user.getUserName();

    }
}

As per the above asset UserUsage definition, this asset should be created with the following rules

Asset UserUsage depends on two beans User and Usage
Keys to join these two beans User and Usage are user.id == usage.user_id
Create Asset only when both beans are available i.e. INNER JOIN

So essentially, Hagrid (specifically Processor Task Service) will create this asset as soon as it found two beans in received which has user.id and usage.user_id matched.

Note Hagrid MUST receive both beans ( during the lifecycle of the sync) and matched on the key provided by the developer then only it will create the asset.

Making of Left Join Assets

There are some assets which are created by the combination of two beans. Consider the below asset definition

@Setter
@NoArgsConstructor
@JsonInclude(JsonInclude.Include.NON_EMPTY)
@JsonIgnoreProperties(ignoreUnknown = true)

@FreshJoin(rightClass = com.freshworks.hagrid.beans.User.class, uniqueJoinName = "user_usage_join",join_type = FreshJoin.JOIN_TYPE.LEFT_JOIN,
        onFieldList = {
                @FreshJoin.OnField(rightClassFieldName ="id", leftClassFieldName = "user_id", leftClass =  com.freshworks.hagrid.beans.Usage.class),
        }
)

public class UserUsage extends AbstractAsset {

    String user_id;
    String usageValue;
    String userName;


    public void setUser_id(User user, Usage usage){
        this.user_id = user.getUserId();
        this.usageValue = usage.getUsage();
        this.userName = user.getUserName();

    }
}

As per the above asset UserUsage definition, this asset should be created with the following rules

Asset UserUsage depends on two beans User and Usage
Keys to join these two beans User and Usage are user.id == usage.user_id
Create asset as soon as left bean is available, does not matter if right has arrived or not yet.
Create asset as soon as both are available i.e. when right bean has also arrived.

So essentially, Hagrid (specifically Processor Task Service) will create this asset as soon as it found either just left bean OR when both beans has been received which has user.id and usage.user_id matched.

Note In case of LEFT join, Hagrid can create asset two times

When just LEFT bean has arrived with partial filled values of the asset.
When RIGHT beans has also arrived with completely filled values from both beans.

ProcessorConfigServices

ProcessorConfigService is the service which holds the configuration for processor services. It reads processor configuration from hagrid.yaml file.
