Traverser Module Services

Traverser Module Services

Traverser module contains the services which traverse the DAG and fetches data from internet efficiently. Services in this module takes care of various aspect of data loading like

  1. Dependency of APIs
  2. Rate limit on server end
  3. Errors occurred during data transfer and transformation.
  4. Limitation of the machine like CPU and memory

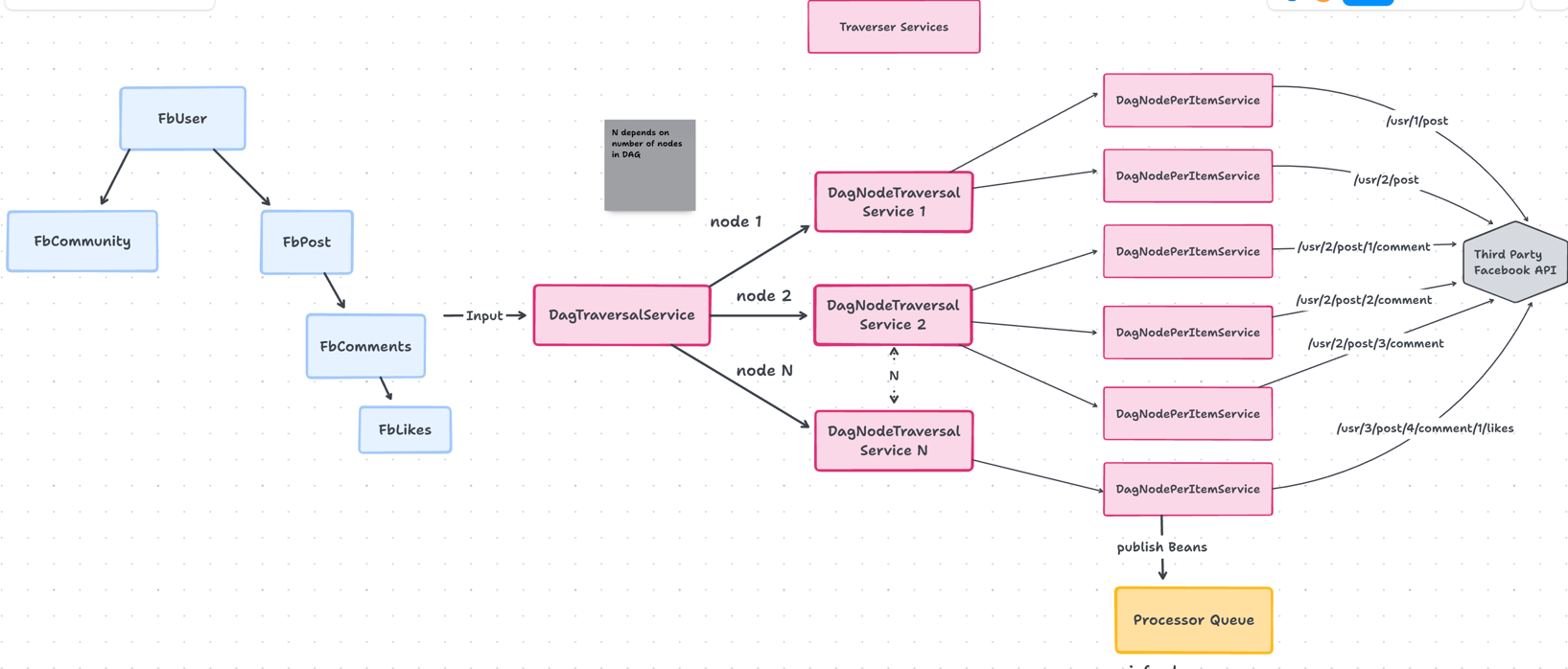

Take a look at services of Traverser module


To traverser this DAG in efficient manner, we have three main services

  1. DagTraversalService
  2. DagNodeTraversalService
  3. DagNodePerItemTraversalService

DagTraversalService

DagTraversalService is the main service of traverser module. Every new sync has 1 instance of DagTraversalService and this instance is responsible for traversing and managing the whole DAG.

It is the responsibility of this class to create instance of DagNodeTraversal class and run in separate thread. So for the above DAG, DagTraversalService will launch 5 instances of DagNodeTraversalService, 4 for nodes present in DAG and 1 for top level node Parent that Hagrid adds by default.

This class does not return until all nodes are traversed successfully ( with error or without error)

DagNodeTraversalService

DagNodeTraversalService as name suggests, this service is responsible for traversing and managing a particular node of the DAG.

It is the responsibility of this class to fetch Items of the parent node from infra layer and for each item (parent data) fetched, launch the new DagNodePerItemTraversalService

For example - suppose we are discussing about the DagNodeTraversalService instance launched for dag node fbPost i.e. fetching data for fbPost, then it is the responsibility of this instance to fetch list of all fbUsers (because it is a parent) from infra layer and then launch DagNodePerItemTraversalService for each of the fbUser so that it can fetch fbPosts for this fbUser.

This service DagNodeTraversalService also does not return until all DagNodePerItemTraversalService are returned.

DagNodePerItemTraversalService

DagNodePerItemTraversalService as the name suggest is responsible for fetching data for this step say fbPost for a given parent ie.. fbUser say (user_id:2) In this service, it creates the instance of fbPost step and inject fbUser item ( example user_id:2). This service calls various services of fbPost step and run through until all data is fetched or some error occurred.

TraverserConfigService

TraverseConfigService is the service which helps you to configure traverser module. Essential via this service, you can configure various aspect of the sync like 1. Dynamic Rate limit

To setup rate limit for each step, you can use TraverseConfigService to set rate limit of each step dynamically.

Here is how it works

TraverseConfigService traverseConfigService = syncServiceContainer.getBean(TraverseConfigService.class);
traverseConfigService.setStepRateLimit(FbUser.class, 200, 20);
